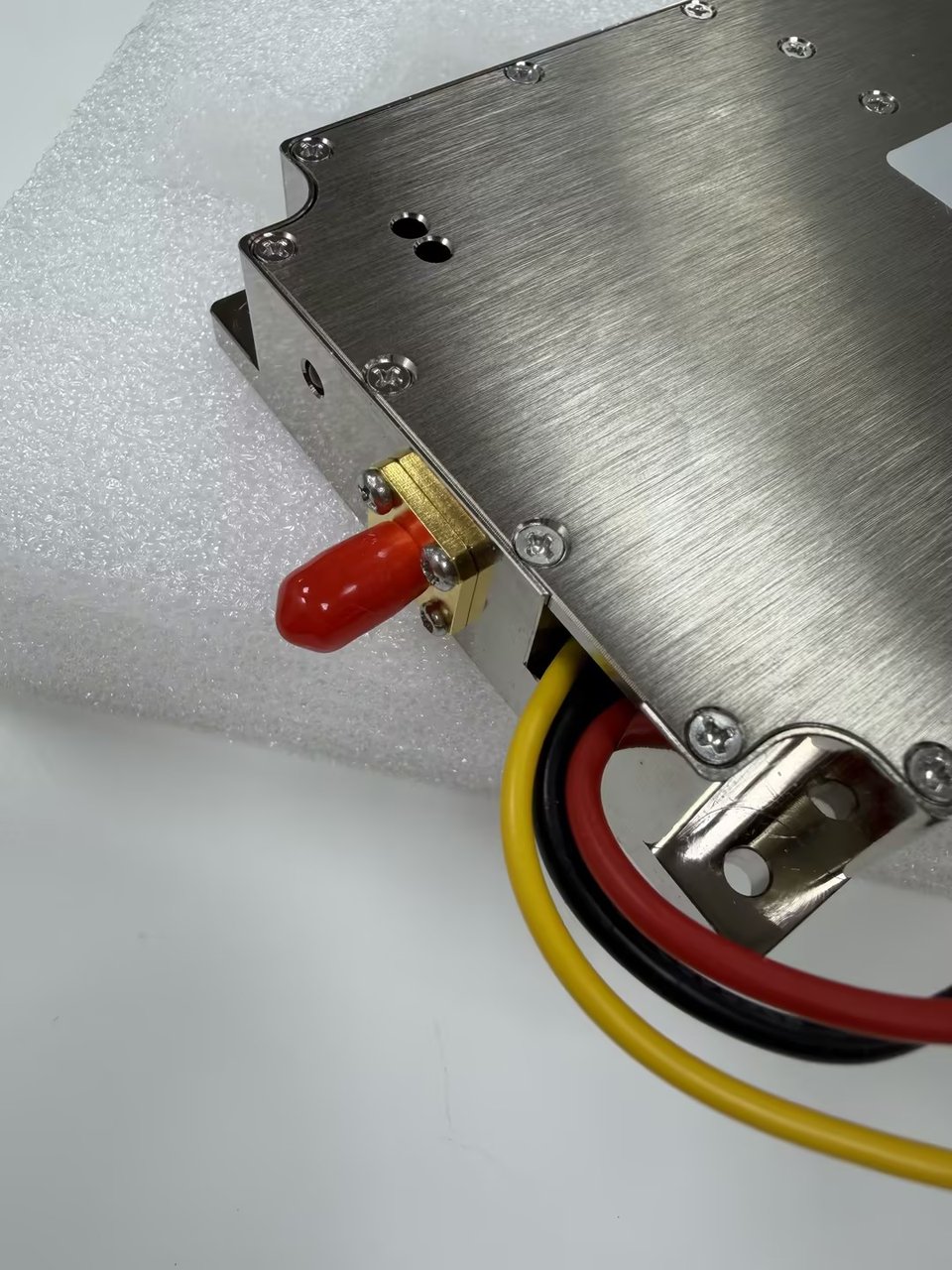

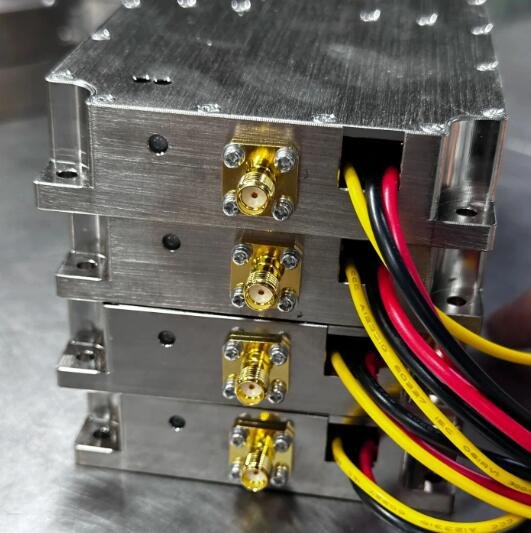

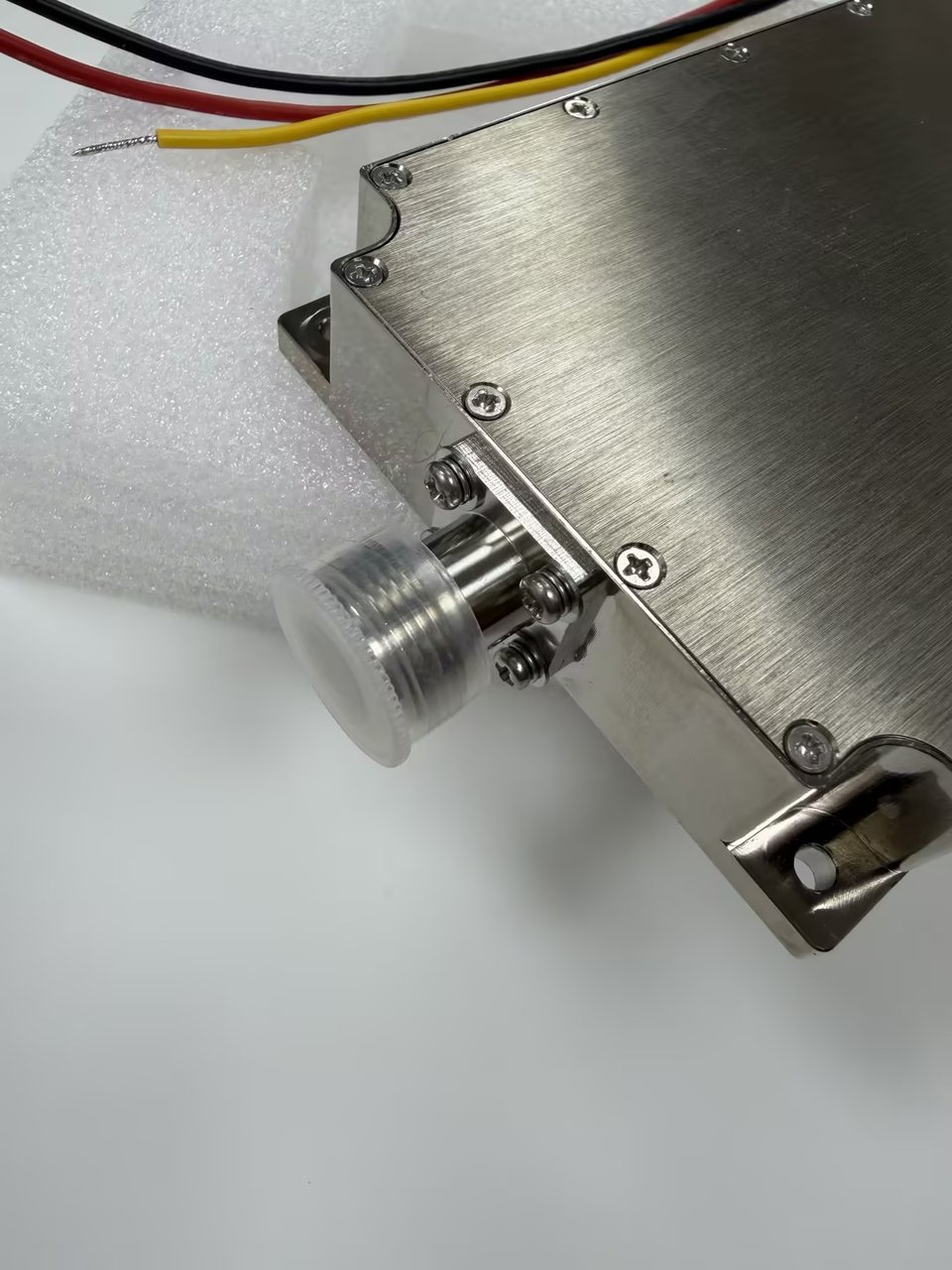

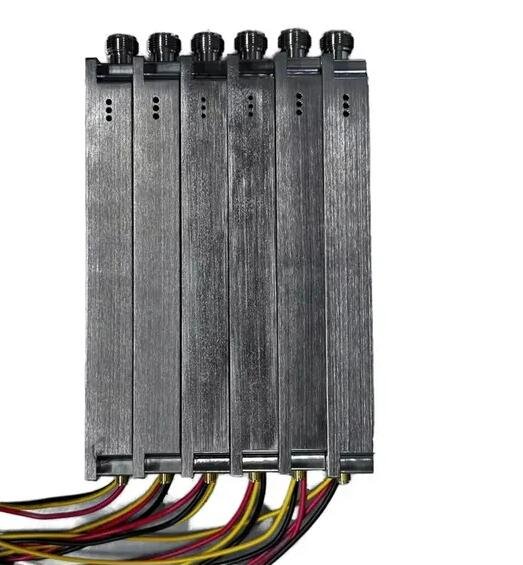

100W 5.8GHz RF Power Amplifier PA Module 5700-5900MHz

Model: CE-YNX-PM-57591BC Brand: Chip-Easy
Price: $611.03
Due to frequent fluctuations in electronic component prices, please contact our sales team for an accurate quotation.
In Stock Frequency Range 5700-5900MHz Bandwidth 5700-5900MHz Operating Voltage 28V Power Flatness <1dB Operating Temperature -30 ~ + 70 °C
Dedicated Sales
Ellie / +86 135-4423-2442 ellie@chip-easy.cn
Follow / Chat:
Technical Specifications
Product Model CE-YNX-PM-57591BC
Bandwidth 5700-5900MHz
Operating Voltage 28V
Power Flatness <1dB
Operating Temperature -30 ~ + 70 °C
Storage Temperature -40 ~ + 150 °C
Relative Humidity <80% RH
Input Power 6 dBm
Power Gain 44 dB
Output Power 47dBm (100W)
Operating Current 10 A
Datasheet Download Download PDF
Description
100W RF Power Amplifier Module 5700-5900MHz 50dBm High Gain 44dB Low Flatness <1dB 5.8GHz Signal Amplifier DC28V Built-in VSWR Protection
Selection Tool Guide

Chip-Easy provides a full range of RF & microwave component selection services, covering passive coaxial devices, active coaxial devices, waveguide devices and more. Our products are widely used in communications, radar, test & measurement, aerospace and other fields.

For technical support or custom services, please contact our sales team:

📞 Phone:0755-83179422 / 13544299442    📧 Email:RFACTIVE@chip-easy.cn / RFPASSIVE@chip-easy.cn / WAVEGUIDE@chip-easy.cn

Get a Quote — CE-YNX-PM-57591BC
Frequently Asked Questions

Is CE-YNX-PM-57591BC in stock now?

Yes — 10 pcs in our Shenzhen warehouse. Orders confirmed before 4 pm ship the same day; express delivery covers most countries in 3–7 days.

What is the price of CE-YNX-PM-57591BC?

The listed price is $4100.00. For volume pricing send an RFQ — quotes are normally returned within 2 hours during business time (GMT+8).

Where can I download the CE-YNX-PM-57591BC datasheet?

The official datasheet PDF is linked in the specifications table above. We can also provide photos of the actual stock and test reports on request.
